The Art of Stainless Steel Etching: Silkscreen vs Photosensitive, Which is Your Best Choice?

As the two main methods of etching, silk screen etching and photosensitive etching have their own characteristics.



 Stainless steel is a material widely used in many industrial fields. It has various processing methods in different application fields. Etching is a core link in the stainless steel processing process. Through the etching process, a variety of patterns and textures can be created on the surface of stainless steel, giving the product a unique decorative effect and functionality.



As the two main methods of etching, silk screen etching and photosensitive etching have their own characteristics. They use silk screen printing and photosensitive imaging technology to achieve different etching effects to meet the needs of different precision and applications.





1. Stainless steel screen etching process



（1）Process principle

The stainless steel screen etching process uses the principle of screen printing to print the anti-corrosion material (such as acid-resistant ink) on the surface of the stainless steel plate through the screen template. After printing, the area covered by the anti-corrosion material will be protected, while the exposed part will gradually dissolve in the etching solution to form a concave and convex pattern.

The core of screen etching is to form a precise anti-corrosion pattern on the stainless steel surface through multiple printing of the screen.





（2）Process steps

Prepare the screen: transfer the pattern to the screen to form a template.

Print the anti-corrosion material: print the anti-corrosion material onto the stainless steel surface through the screen to form a pattern.

Dry the anti-corrosion material: dry the anti-corrosion material to ensure firm adhesion.

Etching: put the stainless steel plate into the etching solution, and the area not covered by the anti-corrosion material is corroded by the etching solution to form a groove.

Cleaning and removing the anti-corrosion material: after the etching is completed, remove the remaining anti-corrosion material to reveal the etched pattern.





（3）Advantages and Disadvantages

Stainless steel screen etching has certain advantages, but also has limitations:

Advantages: Screen etching is relatively simple to operate, with low process costs, and is suitable for mass production of large-area, repetitive patterns. Screen etching is highly efficient and is an economical etching method, especially suitable for decorative patterns or non-fine designs.

Disadvantages: Screen etching has low precision and is affected by the screen aperture and printing process, making it difficult to produce delicate and complex patterns. At the same time, the thickness of the anti-corrosion material is not easy to control, which may cause blurred edges, so it is not suitable for scenes requiring high precision.



（4）Application fields

Stainless steel screen etching is often used in building decorative panels, advertising signs, simple decorative panels and other application scenarios. For products that do not require high pattern fineness, such as large-area curtain wall decorative panels and stainless steel logo signs, screen etching provides a fast and economical processing method.





2. Stainless steel photosensitive etching process



(1) Process principle

The core of stainless steel photosensitive etching technology is photosensitive materials. By coating a photosensitive resist film on the surface of stainless steel and then irradiating the pattern area with ultraviolet light, a specific area on the photosensitive film undergoes a hardening reaction. This area will protect the stainless steel surface from etching, while the unhardened part will be removed after development, and the exposed stainless steel area will be corroded to form a pattern during etching.

Photosensitive etching is often used in scenarios with high precision requirements and can produce delicate and complex patterns.

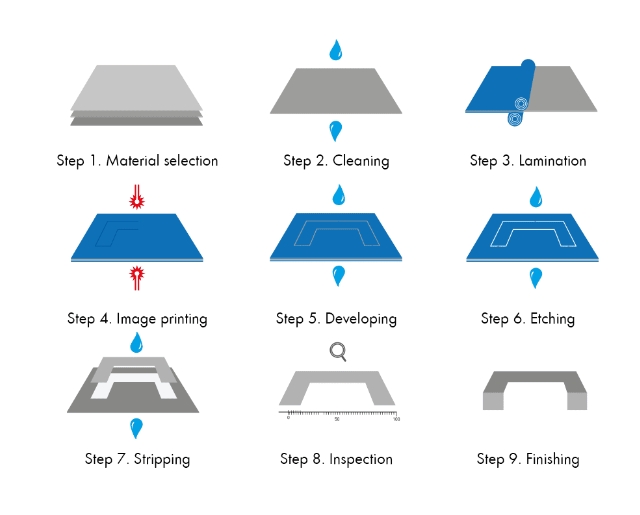

(2) Main steps:

Cleaning the stainless steel surface: Make sure there is no oil or impurities.

Applying photosensitive resist film: Apply photosensitive resist film evenly on the stainless steel surface.

Exposure: Expose the designed pattern to the stainless steel surface with light to harden the pattern part on the photosensitive film and cover the part that does not need to be etched.

Development: Remove the unexposed resist film to expose the pattern part.

Etching: Put the stainless steel into the etching solution, and the exposed area is corroded to form a high-precision pattern.

Removing the resist film: After etching, remove the resist film and leave the pattern.





(3) Advantages and Disadvantages

Stainless steel photosensitive etching is a precise and complex process with the following characteristics:

Advantages: Photosensitive etching can achieve extremely high-precision patterns, suitable for complex design requirements, with clear pattern edges and rich details, especially suitable for small batch, high-precision product processing.

Disadvantages: High cost, complex process, involving multiple steps such as coating, exposure, and development of photosensitive film, high technical level and equipment requirements for operators, and long process cycle, especially for batch production of complex patterns.



(4) Application fields

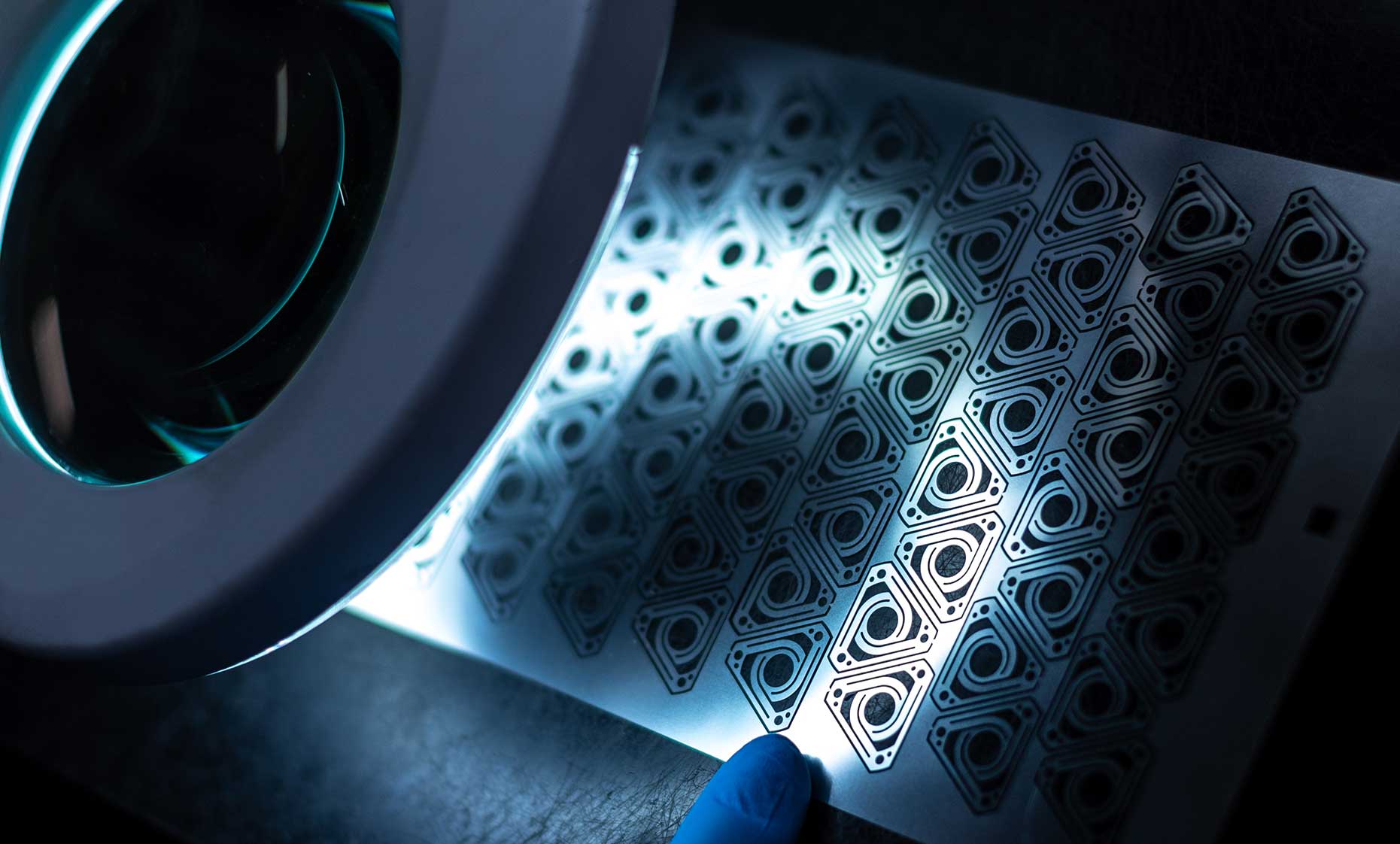

Stainless steel photosensitive etching is widely used in high-end electronic product housings, medical device components, precision industrial parts, luxury decorative panels and other fields. Especially in high-end decorative panels, logos or electronic products that require delicate textures, photosensitive etching technology has irreplaceable advantages.





3. Comparison of the differences between the two processes





4. Selection and Guidelines for Application Scenarios



Choose based on precision requirements

If the accuracy and clarity of the pattern are required to be high, such as designing complex decorative patterns or precision industrial parts, stainless steel photosensitive etching will be more suitable. On the contrary, if the product only requires simple patterns or large-area repeated patterns, such as stainless steel curtain walls and signs, silk screen etching is more suitable.



Choose based on budget

Silk screen etching has low cost and simple process, which is very suitable for producing a large number of products under low-cost budget. Photosensitive etching is suitable for projects with sufficient budget and high product precision requirements.



Choose based on design complexity

When complex designs are required, photosensitive etching can better achieve delicate effects, such as delicate patterns in high-end decorative applications; while silk screen etching is mainly used for larger areas and simpler pattern designs due to process limitations.





5. Summary



Stainless steel screen etching and photosensitive etching each have their own unique advantages and limitations. Screen etching is suitable for simple, repetitive patterns, with a fast process and low cost, and is often used in applications with low precision requirements such as signs and decorative plates. Photosensitive etching, with its high precision and clarity, is more suitable for the production of precision electronic parts and high-end decorative patterns. According to actual needs and design requirements, choosing the right etching process can effectively improve production efficiency and achieve the best visual effect.
